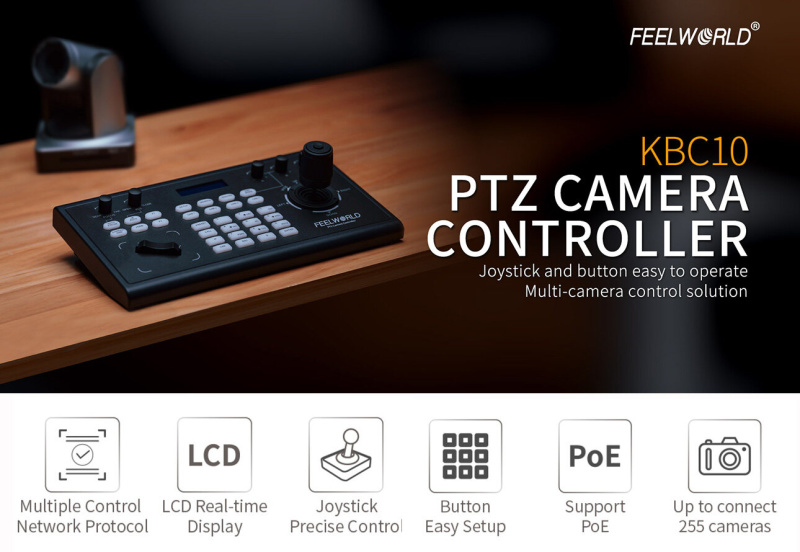

FEELWORLD KBC10 PTZ Camera Controller with Joystick and Keyboard Control LCD Display PoE Supported

PTZ Camera Keyboard Controller The FEELWORLD PTZ camera controller is made for Broadcast, professional video conferencing and live streaming. It can control up to 255 PTZ cameras via LAN or serial interface. Multi-function joystick and intuitive buttons for fast and precise real-time adjustments. It enables you to remotely control the speed of pan, tilt, zoom, and lock moves and incorporates an LCD screen display with real-time status. Supports 12V DC power supply and Power-over-Ethernet (PoE).

Joystick and Button Control
4D joystick precise control allows to precise adjustment for PTZ camera movement and settings, intuitive operation buttons reasonably quickly various operations and settings.

Custom Function Button, LCD Screen
Two custom function buttons (F1 & F2) are customizable in IP VISCA & VISCA protocols. LCD screen display with real-time status, make you know all cameras controlling better, improve efficiency.

Multiple Control and Network Protocols
Supports multiple protocols such as IP VISCA, ONVIF, VISCA, PELCO via Ethernet interface and serial interface RS232, RS422 to give you greater freedom in control and settings .

Up to Connect 255 PTZ Cameras
Supports IP VISCA and ONVIF network protocols over Ethernet interface and up to connect 255 PTZ cameras. Note: The controller and PTZ camera must be connected to the same LAN, and IP addresses must at the same segment.

PoE Support
The controller supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming and control.

Package Include
1× Controller, 1× Power Adapter, 1× User Manual

Reasonable Button Layout
AUTO FOCUS Auto Focus button: Set the camera in auto focus mode with this button. It will light up when camera is in manual focus mode.
AE AUTO Auto Aperture button: Set the camera in automatic aperture mode with this button. It will light up when camera is in manual aperture mode.
CAMERA OSD Camera OSD button: allclose the camera OSD.
HOME HOME button: The camera will back to home position if camera OSDis off. While when the camera OSD is called out, the home button is confrm function of camera OSD.
F1~ F2 Custom function buttons: Custom functions in VISCA and IP VISCA modes.
SETUP Controller local Settings button: Modify and view local settings.
SEARCH Search button: Search for all available devices with ONVIF protocol in the LAN (only in ONVIF Mode)
INQUIRE Inquire button: Check added devices
WBC MODE Auto white balance button: Set the camera in auto white balance mode. It will light up when camera is in manual white balance mode.
CAM1 ~ CAM4 Quickly switch device button: Quickly switch to CAM NUM 1-4 devices (ONVIF, IP VISCA), or to address code 1-4 devices (VISCA, PELCO)
PRESET Short press to set presets; long press to delete presets stting, It needs to work with the number keys and "enter" button, for stting or deleting presets.
CALL Call preset button: It needs to work with the number keys and ENTER button.
IP Manually add network device button:Manually add network devices (only in ONVIF and IP VISCAmodes)
CAM In IP VISCA and ONVIF modes, it will quickly switch to the CAM NUM bound device when adding a device via CAM. InVISCA and PELCO modes, it will switch to the address code when entering a certain address. It needs to work with the number keys and "enter" button.
1~ 9 Number keys of0, 1,2,3,4,5,6,7,8,9. 2,4,6,8 serve as direction keys as well, which could control pan and tilt rotation, and camera OSD.
ESC Return
ENTER Confirm Button
NEAR / FAR Manually adjust the focal length.
OPEN / CLOSE Manually adjust the aperture, OPEN(Aperture Plus)/CLOSE(Aperture minus)
R- / R Manually adjust the Red Gain
B- / B+ Manually adjust the Blue Gain
PTZ SPEED- / PTZ SPEED+ Adjust PTZ Speed, Gears 1 (Slow)- 8(Fast)
