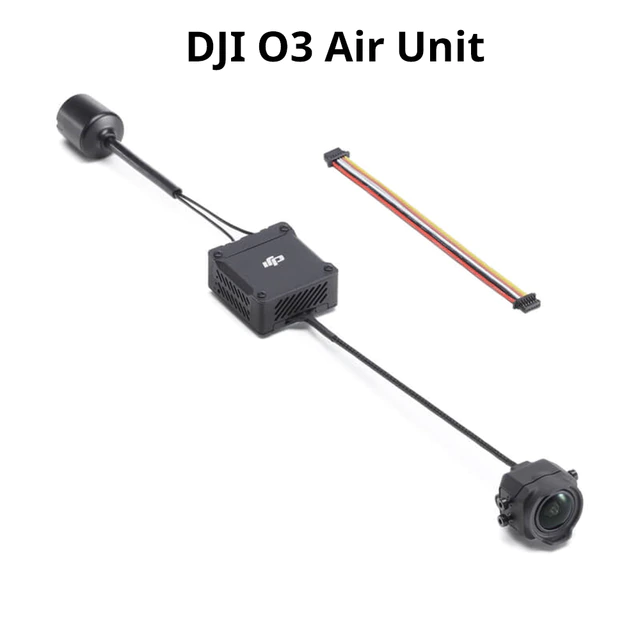

DJI O3 Air Unit

DJI O3 Air Unit

DJI O3 menampilkan spesifikasi pencitraan yang ditingkatkan di seluruh papan.

Modul kamera unit udara dilengkapi dengan penyimpanan internal 20 GB serta sensor 1/1,7 inci untuk menghadirkan detail yang lebih kaya dan citra berkualitas tinggi.

Ini mendukung video 4K/120fps dan merekam rekaman FOV super lebar 155° untuk efek visual yang memukau.

DJI O3 Air Unit

Key Features

Add FPV Capabilities to Your Drone
For DJI Goggles 2 & FPV Goggles V2
Works with DJI FPV Remote Controller 2
DJI O3+ Video Transmission
Stream 1080p H.265 Video
Up to 6.2-Mile Range
Frequency Auto-Switching
2T2R Omnidirectional Antennas
Shoot Video up to 4K60 fps
20GB of Built-In Storage
Add this lightweight O3 Air Unit from DJI to your drone and experience the realism and immersion of FPV piloting. The camera and transmission module work together with DJI's O3+ video transmission technology to stream crisp 1080p H.265 video back to your compatible DJI goggles (not included) from up to 6.2 miles away. The air unit ensures a stable video signal thanks to frequency auto-switching and 2T2R omnidirectional antennas. The camera can also shoot up to 4K60 fps footage and store it on the air unit's built-in 20GB memory.

Sensor :
1/1.7-inch CMOS
Effective Pixels: 48 MP
ISO Range :
100-6400 (Auto)
100-25600 (Manual)
Lensa :
FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
Shutter : Rolling Shutter
Resolusi Video :
Dengan DJI Goggles 2:
4K@50/60fps
2.7K@50/60/100fps
1080p@50/60/100fps Dengan DJI FPV Goggles V2:
4K@50/60fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps
Format Video : MP4
Fitur Kestabilan : RockSteady
Bobot Kamera : 8.3 gram (termasuk kabel koaksial)
Bobot :
Air Unit (tanpa modul kamera): ± 28 gram
Air Unit (dengan modul kamera): ± 36.4 gram
Antenna: ± 3 gram
Dimensi :
Transmission Module (L×W×H): 32.5×30.5×14.5 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm
Frekuensi Komunikasi :
2.400-2.4835 GHz (RX)
5.725-5.850 GHz (RX dan TX)
Power Transmisi :
FCC: CE: SRRC: Latensi :
Dengan DJI FPV Goggles V2:
810p/120fps Video Transmission: tingkat latensi lebih rendah dari 28ms.
810p/60fps Video Transmission: tingkat latensi lebih rendah dari 40ms. Dengan DJI FPV Goggles V2:
1080p/100fps Video Transmission: tingkat latensi lebih rendah dari 30ms.
1080p/60fps Video Transmission: tingkat latensi lebih rendah dari 40ms.
Jarak Maksimal Video :
10 km (FCC), 2 km (CE), 6 km (SRRC)
Voltase : 7.4-26.4 V
Temperatur Operasi : -10º to 40º C (14° to 104° F)
Channel :
FCC/SRRC/CE:
40 MHz
Channel 1: 5794.5 MHz 20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz
Kompatibilitas : DJI FPV Remote Controller 2, DJI Goggles 2, dan DJI FPV Goggles V2
