Note:
The Camera and HD Digital VTX(DJI O3 HD Digital VTX, Walksnail Avatar HD Digital VTX, and Vista HD Digital VTX) are not included in all packages. you need to buy them separately
The new stock Pavo Pico has an important update on the FC used - F4 2-3S 20A AIO FC V1. This FC allows DJI O3 to operate under lower voltage and a DJI O3 6-pin connector has been added to let users plug and play. No more soldering! The USB connector has been moved to the side for easier configuration on quad.
Specs

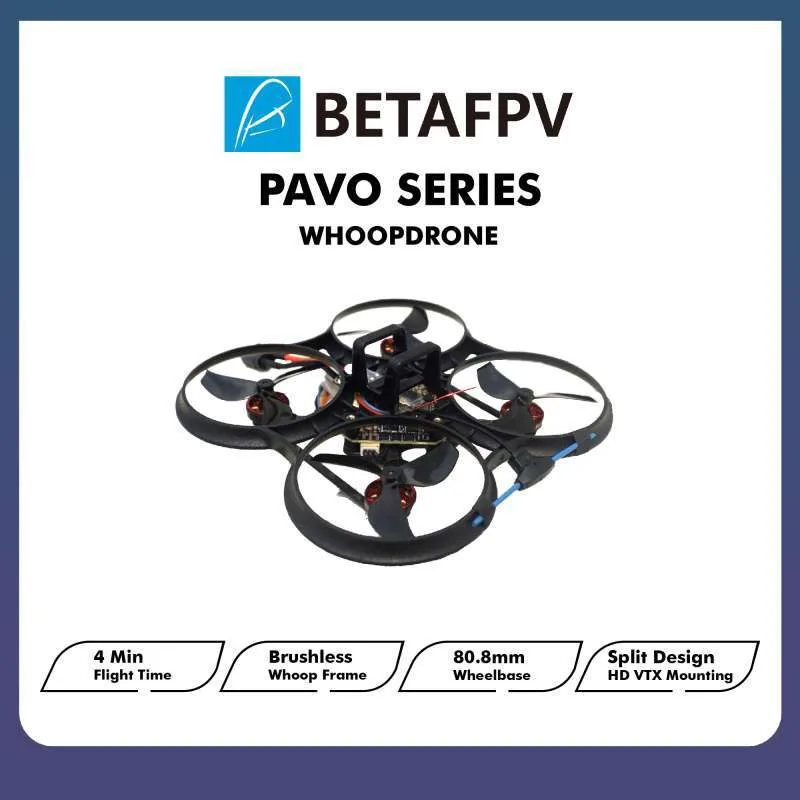

Items: Pavo Pico Brushless Whoop Quadcopter
Color: Black
Flight Time*: 4min
Wheelbase: 80.8mm
FC: F4 2-3S 20A AIO FC V1 (STM32F405 MCU Version)
Battery: 2S 450mAh 45C
Props: GF 45mm-3B black propeller
Motor: 1102 | 14000kv
Weight (No Battery): 71.2g (DJI O3), 66.02g (Vista), 65.88g (Avatar)
HD VTX: Support DJI O3 Air Unit, Caddx Vista Kit / RUNCAM Link / Walksnail Avatar HD Pro Kit installation.
RX Version: Serial ELRS / TBS
FPV Camera: Support DJI O3 Camera, Caddx Series, RUNCAM Series 19mm/20mm Camera, Avatar HD Pro Camera
Note: The flight time is calculated under 8.4V~6.8V. And the Pavo Pico Brushless Whoop Quadcopter does not include HD VTX and Camera
Package
1 * Pavo Pico Brushless Whoop Quadcopter (Without HD Digital VTX & Camera)
1 * 2S 450mAh Battery
4 * GF 45mm-3B Propellers
1 * USB Parameter Adjustment Cable
1 * 5.8G Copper Tube Antenna Package
1 * VTX Bracket Screw Package
2 * DJI O3 HD Digital VTX Antenna Mount
2 * DJI O3 HD Digital VTX Mounting Bracket
1 * VTX Mounting Plate (Vista/Avatar HD Digital VTX Version Only)
1 * DJI O3 Lens UV Protector (DJI O3 HD Digital VTX Version Only)
1 * DJI O3 Lens Protective Case (DJI O3 HD Digital VTX Version Only
